12 Nov - New bench tests with The Beast

Updated: Apr 26

Configuration:

Processor: AMD Ryzen 7 3800XT

Graphic card: Nvidia GeForce RTX 2080 Super + full covering spreader

Motherboard: ASUS TUF Gaming B550M-Plus

Power Supply: Seasonic Prime Titanium Fanless 600


Summary:

NB: Stress tests involve testing beyond normal operational capacity. Additional tests in-game will be performed in order to share results that better reflect a standard use of electronic components.


Furmark:

Sides opened & Top mesh

GPU max: 81°C


Furmark:

Tempered glasses & Top mesh

GPU max: 88°C


Furmark:

Aluminum panels & Top mesh

GPU max: 85°C


Furmark:

Tempered glasses & Top mesh

140mm fan x2 @ 500 RPM

GPU max: 78°C


Furmark:

Tempered glasses & Top mesh

140mm fan x2 @ 750 RPM

GPU max: 68°C


Furmark:

Tempered glasses & Top mesh

140mm fan x2 @ 1300 RPM

GPU max: 62°C


Furmark:

Aluminum panels & Top mesh

140mm fan x2 @ 750 RPM

GPU max: 66°C

Find below our previous bench tests published on the 9th of October and already available here. Ambient was 22°C. The case was fully opened.


3DMark:

CPU Max: 64°C

GPU max: 66°C




Furmark:

GPU max: 79°C

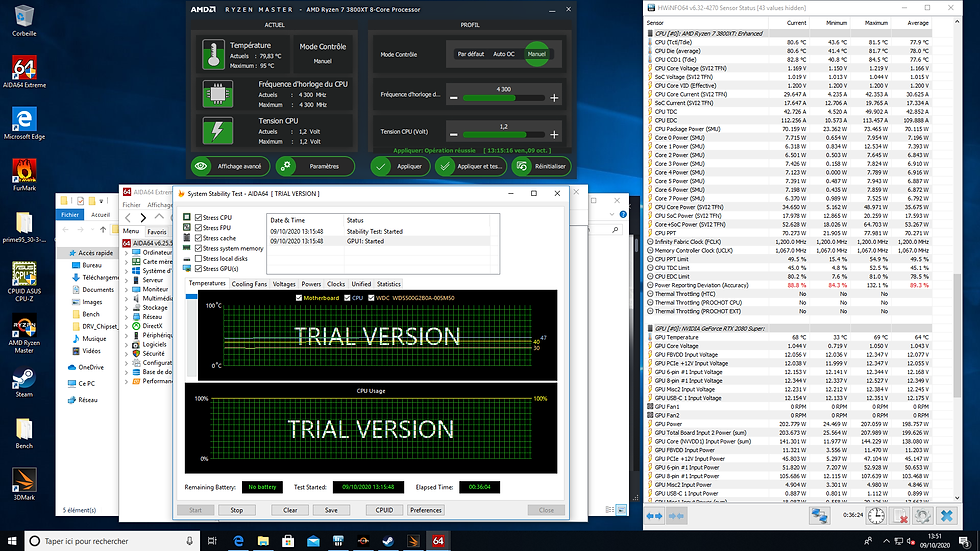

AIDA64:

CPU max: 81.5°C

GPU max: 69°C
